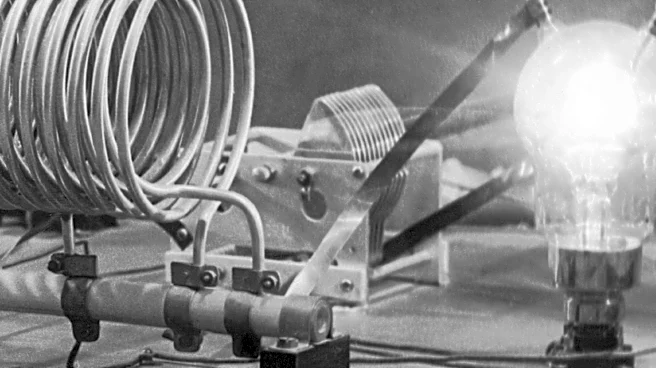

In 1906, American inventor Lee de Forest introduced a groundbreaking device known as the Audion. This vacuum tube was designed to boost weak electrical signals and served as a crucial wireless signal detector. Its invention marked a significant step in the development of radio and television, earning de Forest the moniker "Father of Radio." The Audion was one of the first electronic devices capable of increasing sounds, a capability that set it apart
from previous technologies and paved the way for more advanced electronic communication systems.
Early Discoveries and the Path to the Audion
The concept behind the Audion evolved from earlier observations regarding the electrical conductivity of gas flames, a phenomenon known since the mid-19th century. Early wireless experimenters had noted that this conductivity was influenced by the presence of radio waves. De Forest built upon this knowledge, discovering that gas within a partial vacuum, when heated by a conventional lamp filament, exhibited similar behavior. He found that by wrapping a wire around the glass housing of such a device, it could function as a detector of radio signals. This initial design involved a small metal plate sealed inside the lamp housing, connected to the positive terminal of a 22-volt battery via headphones, with the negative terminal linked to one side of the lamp filament. When wireless signals were applied to the external wire, they caused disturbances in the current, producing audible sounds in the headphones.
This development was particularly important because existing commercial wireless systems were heavily protected by patents. A new type of detector, like de Forest's, offered him an opportunity to market his own system independently. His continued experimentation led to a crucial improvement: connecting the antenna circuit to a third electrode placed directly in the path of the space current significantly enhanced the device's sensitivity. In its earliest forms, this third electrode was simply a piece of wire bent into a gridiron shape, which is where the term "grid" originated.
The Three-Part Structure and Power Gain
The Audion's structure was characterized by three main components: a filament, a plate, and a grid. The filament, when heated, produced electrons. The plate was responsible for collecting these electrons, while the grid, positioned in the center, controlled the flow of electrons. This control mechanism allowed the Audion to amplify signals, a capability that was revolutionary for its time. The grid's design, often described as a serpentine electrode located below the plate, was central to its function.
One of the most significant advantages of the Audion was its ability to provide power gain. With other detectors of the era, all the power required to operate the headphones had to come directly from the antenna circuit itself. This limitation meant that only strong signals could be effectively detected, and weak transmitters could only be heard over short distances. The Audion, however, could amplify these weak signals, allowing for the reception of transmissions from much greater distances. This power gain made radio communication more practical and expanded its potential applications. The Audion was widely used as the detector in the first vacuum tube radio receivers, a role it maintained until the 1930s, before being superseded by newer technologies.
